Screw vertical mixer

agitator

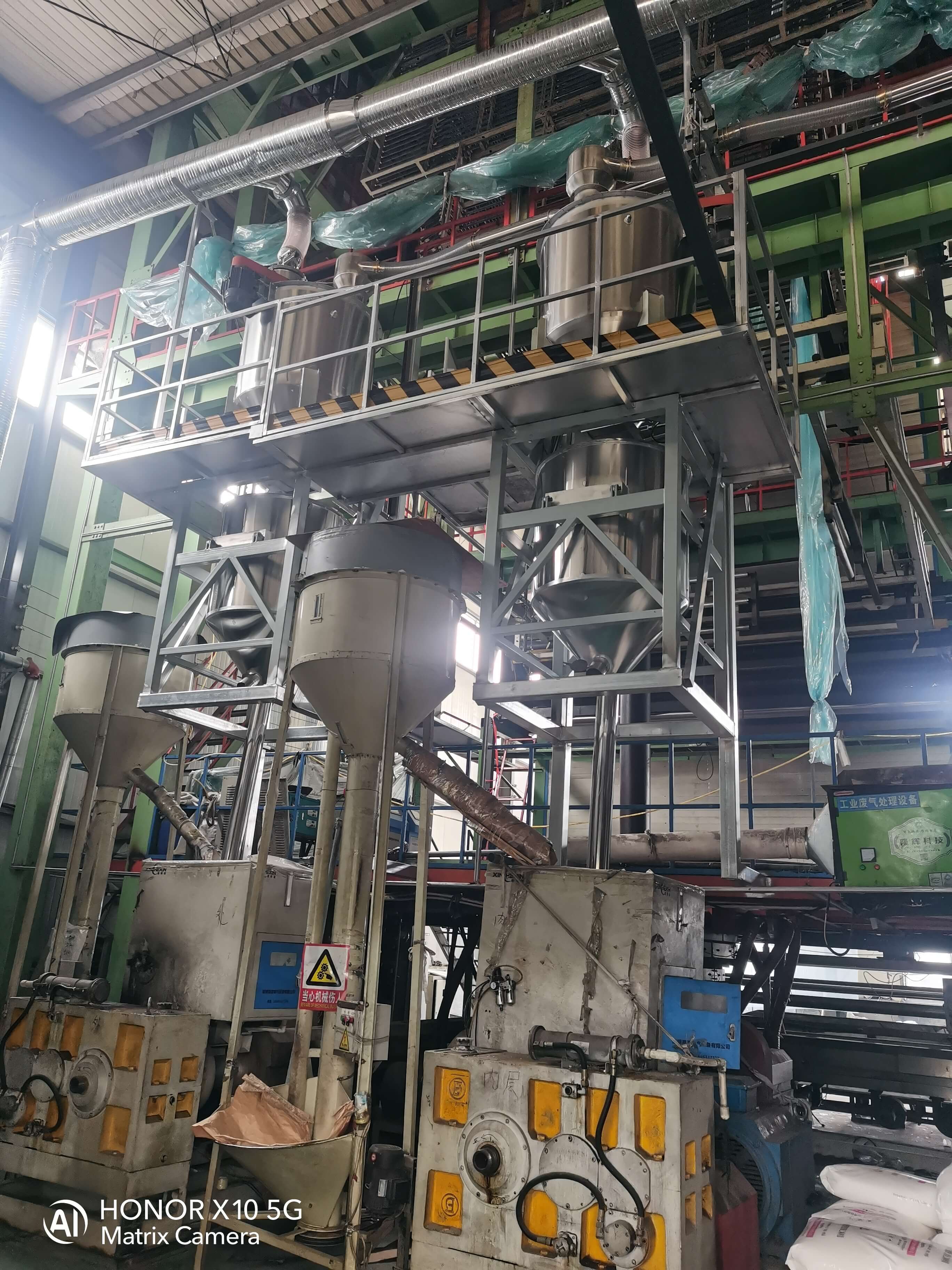

Our company adopts the up-mounted design of the mixing unit, which reduces the conveying distance of the material, avoids the stratification and segregation of the material caused by the secondary long-distance conveying, and reduces the floor area. The closed design of the mixer replaces the phenomenon of spreading, rising and leaking in the manual feeding process of the traditional mixer, which reduces waste and saves labor.

How the mixer works:

Through the rapid rotation of the screw, the raw materials are lifted from the bottom of the barrel from the center to the top, and then scattered in the umbrella shape, back to the bottom, so that the raw materials are rolled up and down in the barrel, and a large number of raw materials can be evenly mixed in a short time.

Mixer model

Model

HGZ50

HGZ100

HGZ150

HGZ200

HGZ300

HGZ400

HGZ500

Effective volume

Effective   Cubage(L)

35

75

110

150

225

300

375

Actual volume

Cubage(L)

50

100

150

200

300

400

500

capacity

Output(L/H)

700

1500

2200

3000

4500

6000

7500

Can be customized according to customer needs mixer.
