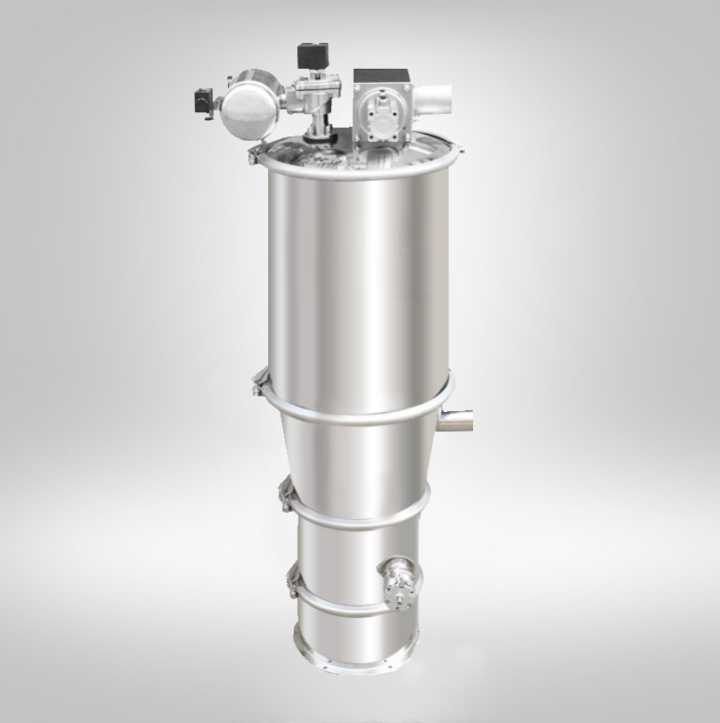

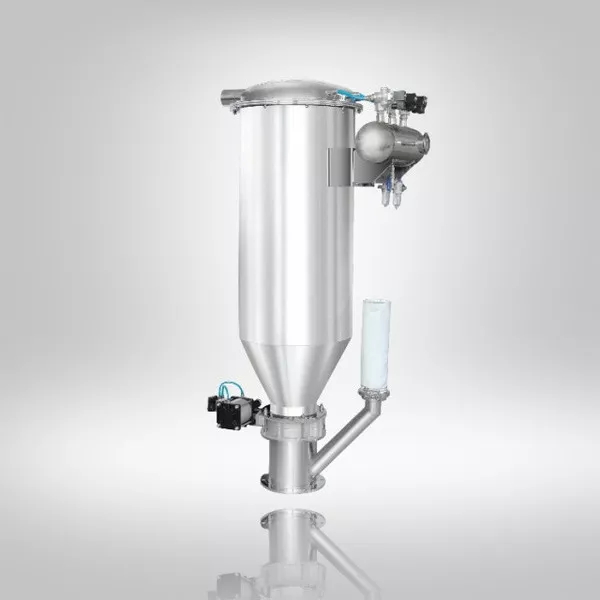

Vacuum suction machine feeding system: the feeding principle is negative pressure feeding, which mainly realizes the feeding of functional masterbatch (such as: opening agent, smoothing agent, antistatic agent, anti-flow drops, antioxidant, anti-violet agent, etc.). Through the principle of negative pressure suction, the master material is transported to the master bin.

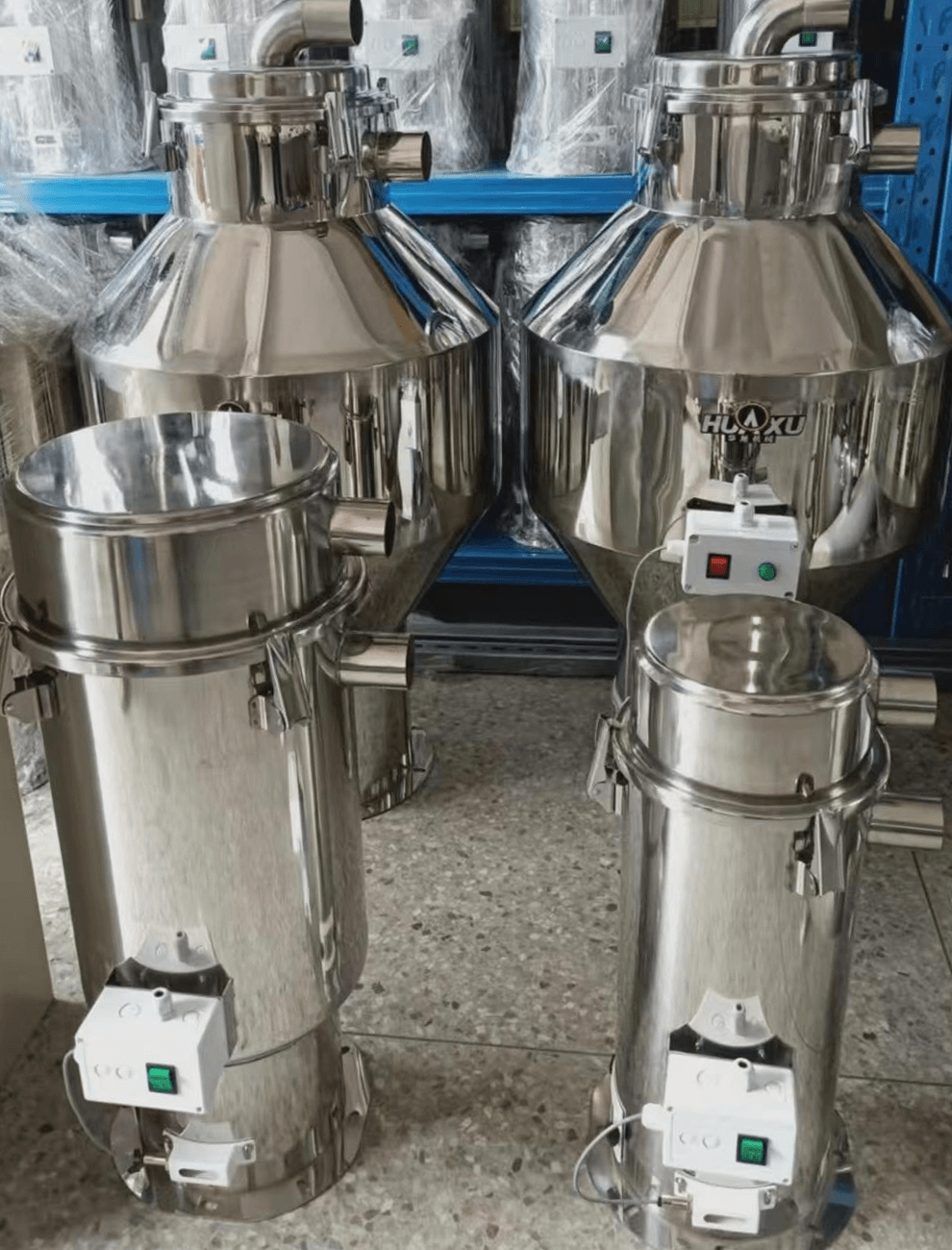

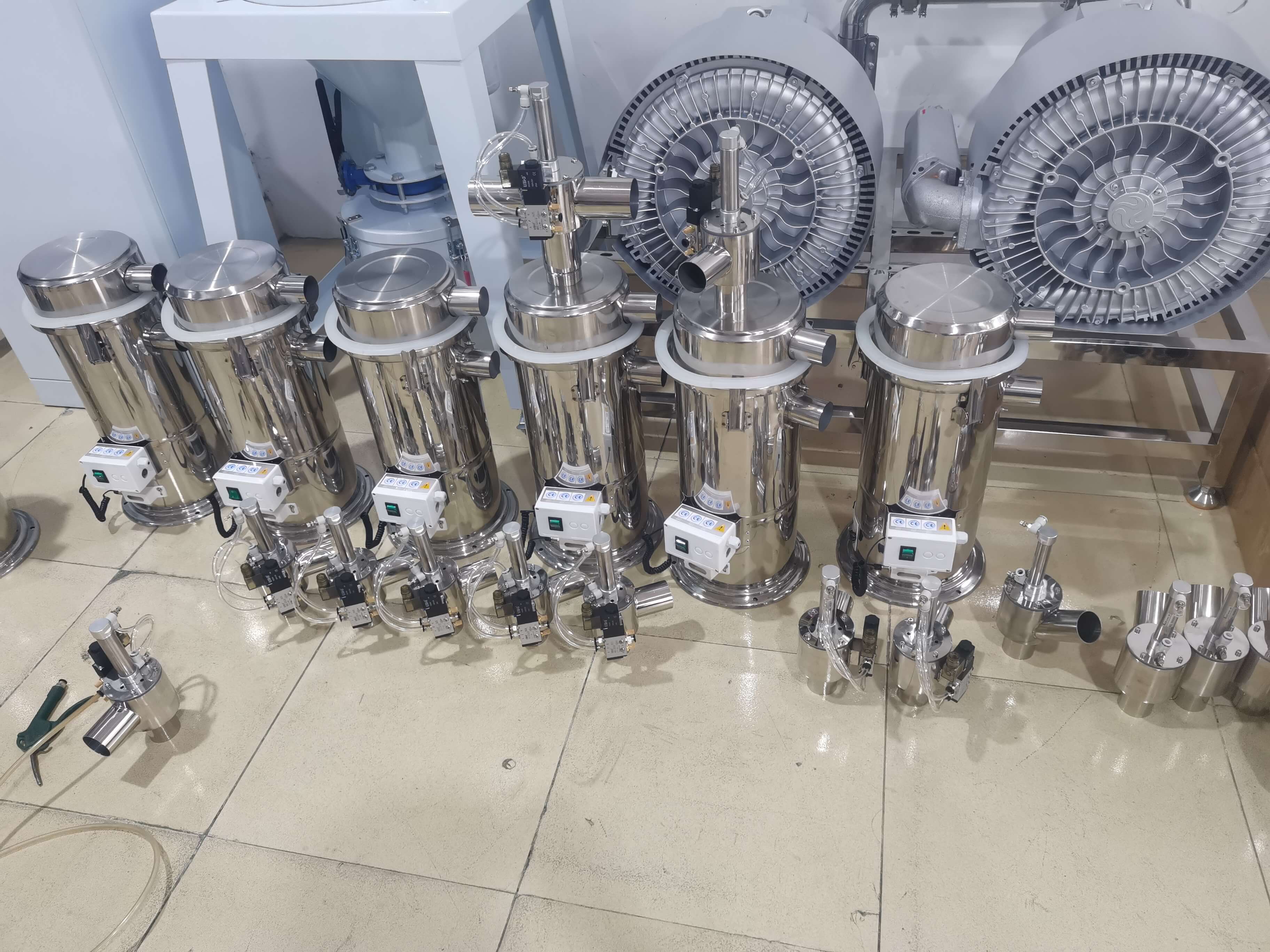

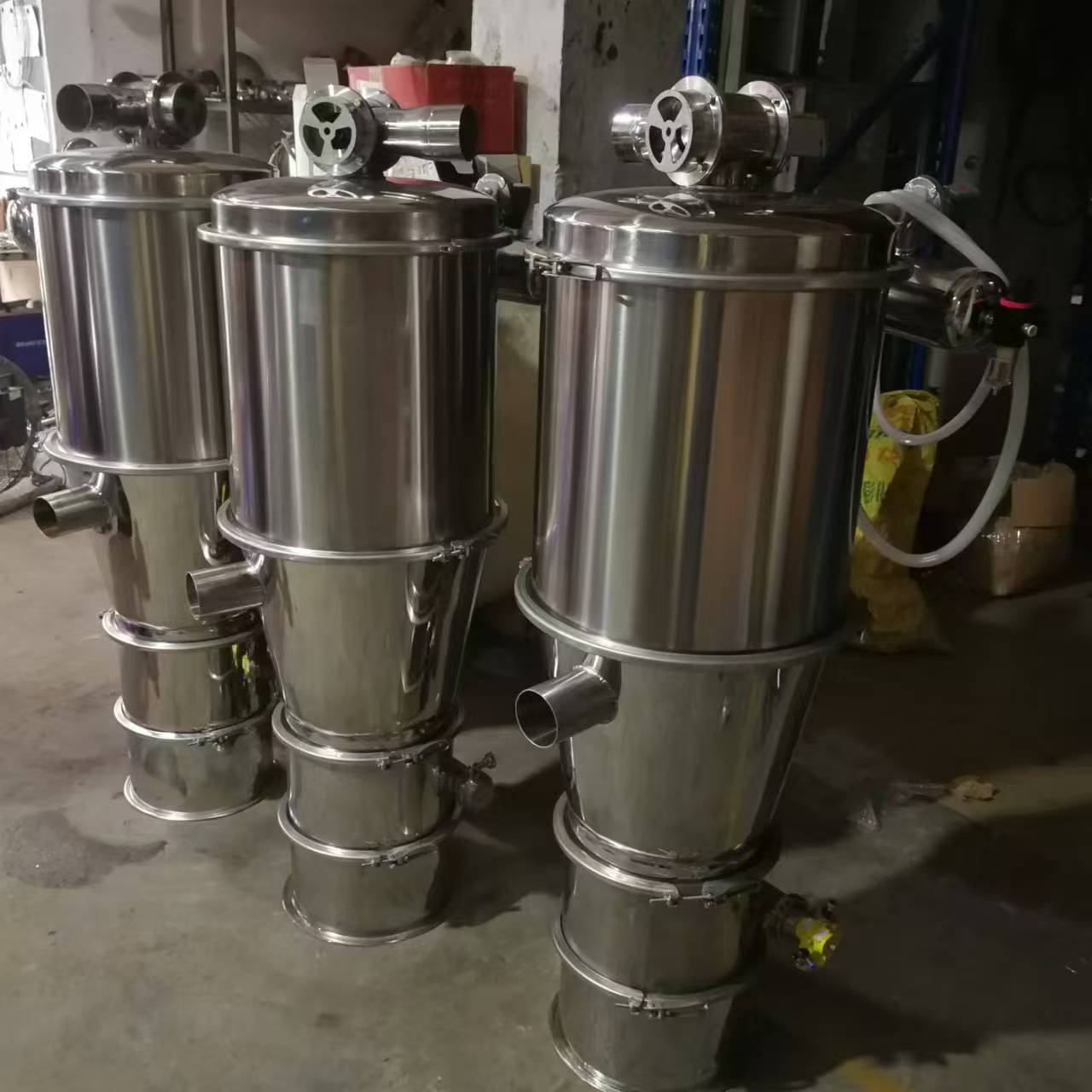

Vacuum suction hopper: the feed port is equipped with check valve plate equipped with European magnetic spring switch, feedback full bucket lack of material signal, accurate and stable use.
argument | Feeding pipe (IN) | Duct （IN） | capacity （kg/hr) | ||
capacity(L) | Overall (MM) | Net weight(KG) | |||
6 | 400*250*350 | 6 | 1.5 | 1.5 | 280 |
12 | 600*250*360 | 8 | 1.5 | 1.5 | 480 |
24 | 650*280*360 | 10 | 1.5 | 1.5 | 720 |
24 | 690*350*380 | 10 | 2 | 2 | 980 |
36 | 900*300*380 | 10 | 2 | 2 | 1000 |
36 | 900*300*380 | 12 | 2 | 2 | 1500 |
50 | 900*300*380 | 12 | 3 | 3 | 1800 |
Note: Can be customized according to customer needs. | |||||
